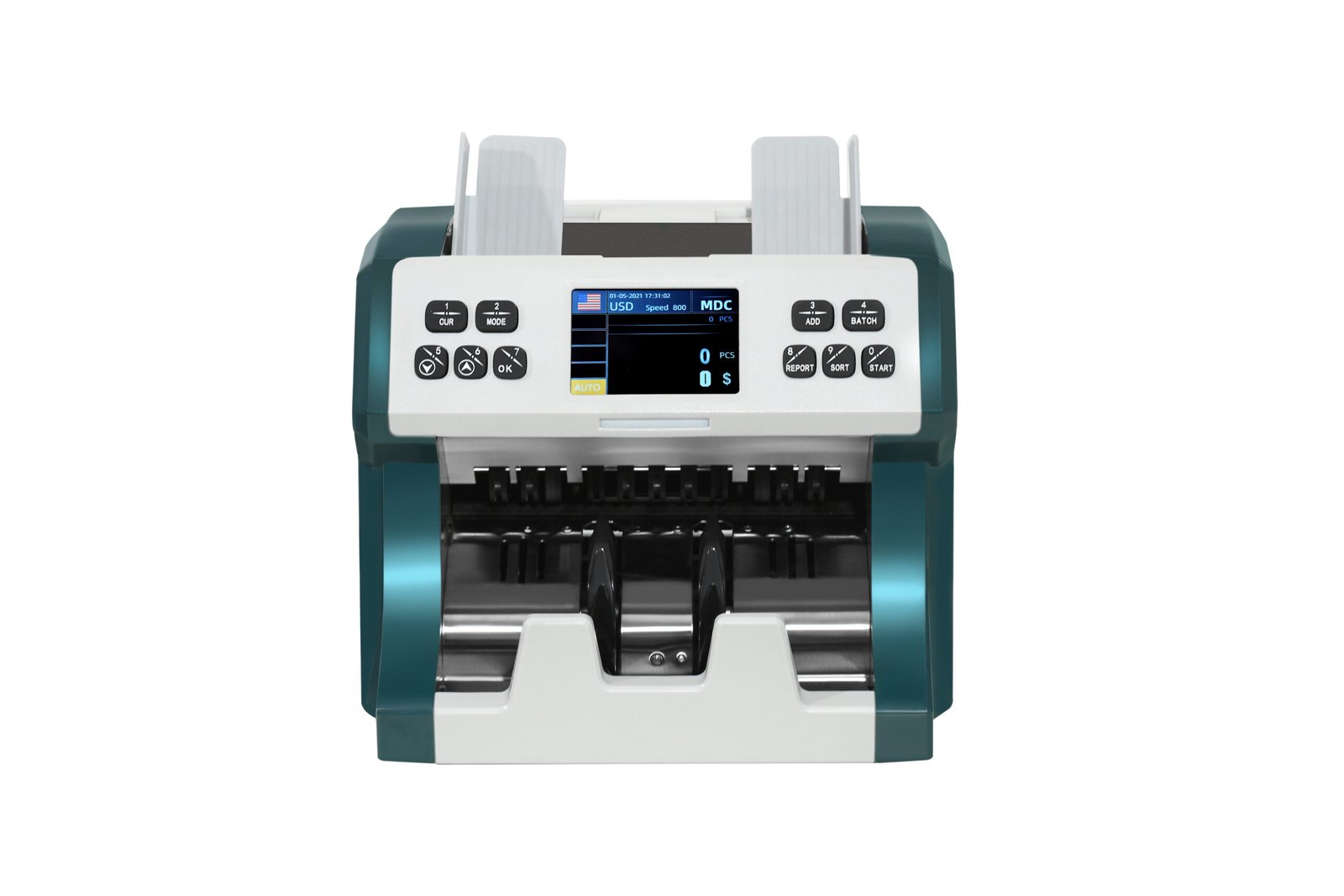

2CIS Mix Value Counting Machine FMD-700

Mix value counting of multi currency

Auto currency identiﬁcation

Counterfeit Detection: Image, Magnetic, Infrared, Ultraviolet

Error Detection: Double Note Detection, Half Note Detection,

Chain Note Detection

Serial numbers reading for USD, EUR, GBP, CNY etc

Available currencies select: USD, EUR, GBP, RUB, CHF, MOP, XAF, XOF THB, CAD, HKD, JPY, KRW,…. up to 120 , software can put 15 max together

Options: Customer Display / Thermal Printer / PC connection

Interface: USB, LAN, Serial Port

4.3″ TFT-LCD Display

LCD Display — Color TFT LCD and full graphic UI notification
Simple Maintenance — Opening from top and rear bill path
facilitates routine maintaining work
Upgrade the software by USB disk
Connect to the printer to print out the counted report

Description
Additional information

Multi-Currency Value Counter

Functionality
Counting the mixed value of multiple currencies
Automatic currency identification
Counterfeit detection: image, magnetic, infrared, ultraviolet
Error detection: double note detection, half note detection,
Withtriggering automatic:As soon as the notes are detected in the hopper, the machine starts counting on its own, without any additional intervention.
Chained Ticket Detection
Reading serial numbers for USD, EUR, GBP, CNY etc.
Selected available currencies: USD, EUR, GBP, RUB, CHF, MOP, THB, CAD, HKD, JPY, KRW, XAF, XOF…. up to 120, the software can assemble 15 maximum
Options: Customer display / Thermal printer / PC connection
Interface: USB, LAN, port series, Map memory SD 4 GB
4.3″ TFT-LCD display

Mixed Denomination Bill Money Value Counter and Sorter

SPECIFICATION
Detection: CIS (image capture sensor) • MG (magnetism) • UV (ultraviolet) • IR (infrared) • US (ultrasound)
Machine dimensions: 31.4 x 28.8 x 31.0 cm
Box dimensions: 34.0×38.0x36.0 cm (1 piece), 59.0×37.0x36.0 cm (2 pieces)
Net weight: 11 kg (1 piece)
G. weight: 12 kg (1 piece), 24 kg (2 pieces)
Counting speed: 800/1000/1200 tickets/min
Value counting speed: 1000 notes/min
Sorting speed: 800 tickets/min
Feeding system: Roller friction system
Hopper capacity: 600 notes (optional 1,000 note expansion)
Stacking capacity: 300 tickets
Power supply: Voltage range 90 to 220V+10% 50/60HZ

Model	FMD-700
Specification	Detection: CIS (image capture sensor) • MG (magnetism) • UV (ultraviolet) • IR (infrared) • US (ultrasound) Machine dimensions: 31.4 x 28.8 x 31.0 cm Box dimensions: 34.0×38.0x36.0 cm (1 piece), 59.0×37.0x36.0 cm (2 pieces) Net weight: 11 kg (1 piece) G. weight: 12 kg (1 piece), 24 kg (2 pieces) Counting speed: 800/1000/1200 tickets/min Value counting speed: 1000 notes/min Sorting speed: 800 tickets/min Feeding system: Roller friction system Hopper capacity: 600 notes (optional 1,000 note expansion) Stacking capacity: 300 tickets Power supply: Voltage range 90 to 220V+10% 50/60HZ

Model

FMD-700

Specification

Detection: CIS (image capture sensor) • MG (magnetism) • UV (ultraviolet) • IR (infrared) • US (ultrasound)
Machine dimensions: 31.4 x 28.8 x 31.0 cm
Box dimensions: 34.0×38.0x36.0 cm (1 piece), 59.0×37.0x36.0 cm (2 pieces)
Net weight: 11 kg (1 piece)
G. weight: 12 kg (1 piece), 24 kg (2 pieces)
Counting speed: 800/1000/1200 tickets/min
Value counting speed: 1000 notes/min
Sorting speed: 800 tickets/min
Feeding system: Roller friction system
Hopper capacity: 600 notes (optional 1,000 note expansion)
Stacking capacity: 300 tickets
Power supply: Voltage range 90 to 220V+10% 50/60HZ
